Scenario
The Account Executive called the SOC earlier and sounds very frustrated and angry. He stated he can’t access any files on his computer and keeps receiving a pop-up stating that his files have been encrypted. You disconnected the computer from the network and extracted the memory dump of his machine and started analyzing it with Volatility. Continue your investigation to uncover how the ransomware works and how to stop it!
I’ll be using SIFT Workastation from SANS. https://www.sans.org/tools/sift-workstation/
Forensics - The Begining
At first, we get a .mem file which we can easily read with volatility and this is also what we’re expected to do.

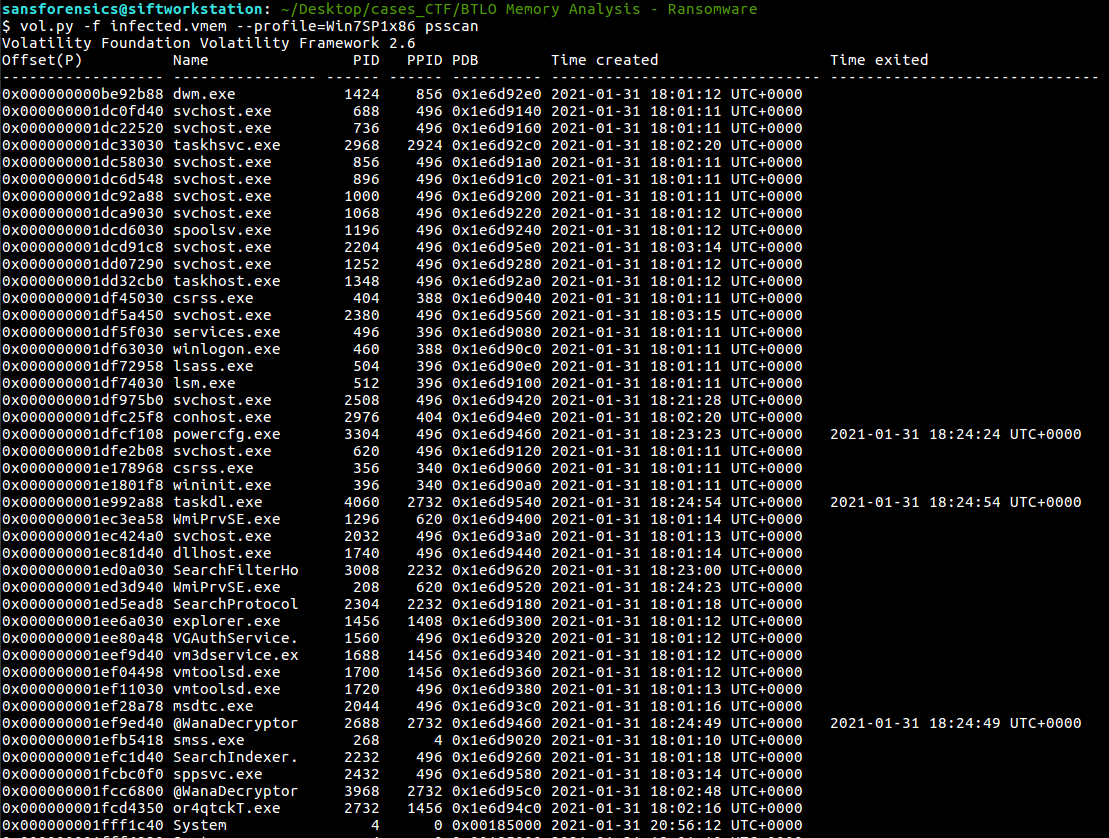

Run “vol.py -f infected.vmem –profile=Win7SP1x86 psscan” that will list all processes. What is the name of the suspicious process? (3 points):
@WanaDecryptor
@WanaDecryptor definately sticks out here, along with or4qtckT.exe. Checking PPID 2732 of @WanaDecryptor.
Googling the Filenames reveals what the Ransoware should be
Can you identify what ransomware it is? (Do your research!) (2 points): WannaCry

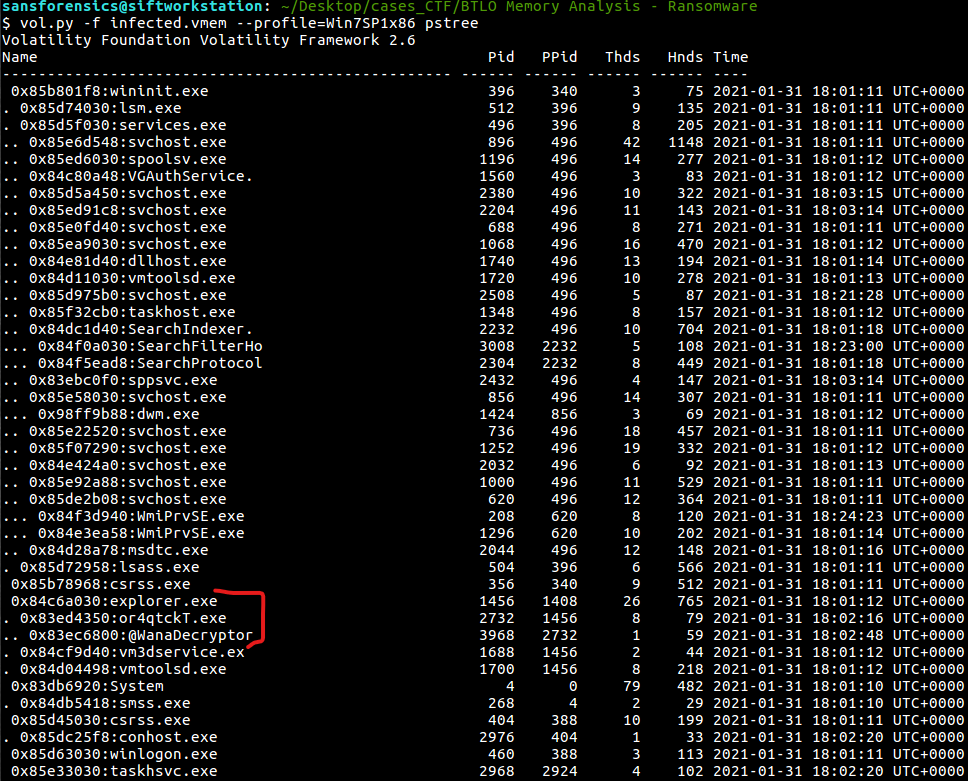

Checking the Process Tree it becomes more obvious
What is the parent process ID for the suspicious process? (3 points): 2732
What is the initial malicious executable that created this process? (3 points):
or4qtckT.exe
We can also get graphical view of process tree including exited processes
1
2
3
4
5
6
7
8
9
10
11
sansforensics@siftworkstation: ~/Desktop/cases_CTF/BTLO Memory Analysis - Ransomware
$ vol.py -f infected.vmem --profile=Win7SP1x86 psscan --output dot --output-file psscan.dot
Volatility Foundation Volatility Framework 2.6
Outputting to: psscan.dot
sansforensics@siftworkstation: ~/Desktop/cases_CTF/BTLO Memory Analysis - Ransomware
$ dot -Tpng psscan.dot -o psscan.png
> If you drill down on the suspicious PID (vol.py -f infected.vmem --profile=Win7SP1x86 psscan | grep (PIDhere)), find the process used to delete files (3 points): `taskdl.exe`
Taking deeper look - handles / dlllist

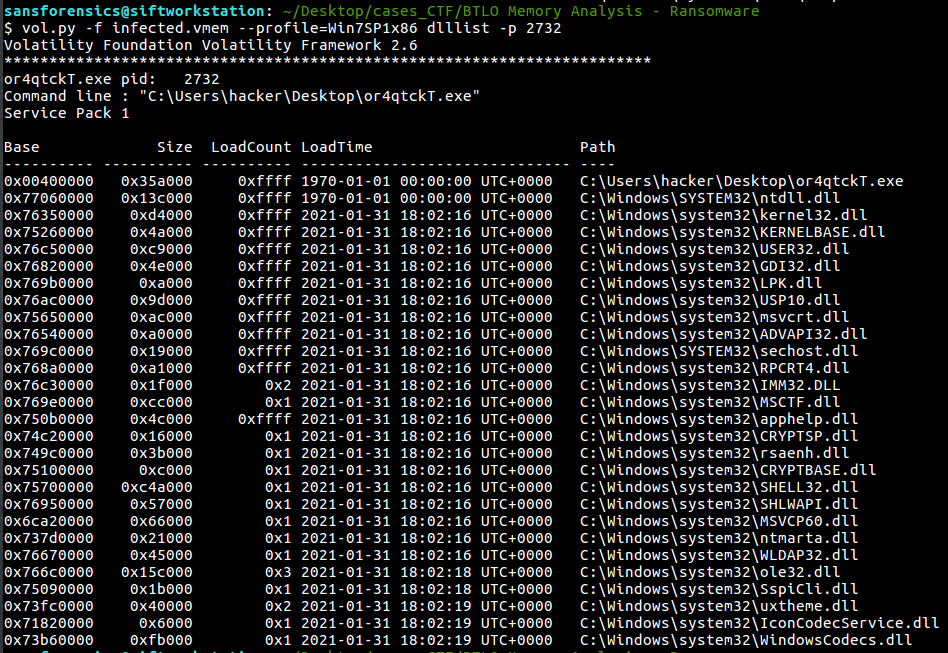

Using dlllist module with the process should reveal loaded libraries and .exe0
Find the path where the malicious file was first executed (3 points):
C:\Users\hacker\Desktop\or4qtckT.exe

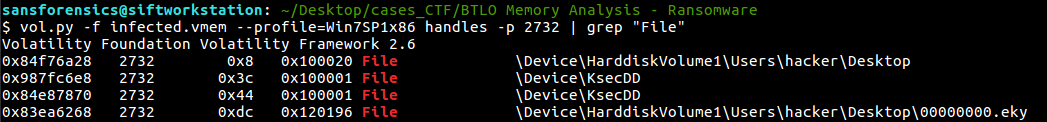

Checking handles reveals the .eky file which is encrypted private key with embeded public key.
What is the filename for the file with the ransomware public key that was used to encrypt the private key? (.eky extension) (3 points):
00000000.eky

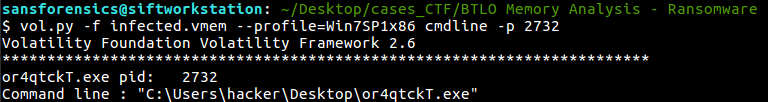

Cmdline
Thanks for reading!
