It’s all about an Email Analysis with small CTF-y part

CTF is hosted on https://blueteamlabs.online/
Scenario
CoCanDa, a planet known as ‘The Heaven of the Universe’ has been having a bad year. A series of riots have taken place across the planet due to the frequent abduction of citizens, known as CoCanDians, by a mysterious force. CoCanDa’s Planetary President arranged a war-room with the best brains and military leaders to work on a solution. After the meeting concluded the President was informed his daughter had disappeared. CoCanDa agents spread across multiple planets were working day and night to locate her. Two days later and there’s no update on the situation, no demand for ransom, not even a single clue regarding the whereabouts of the missing people. On the third day a CoCanDa representative, an Army Major on Earth, received an email.

Intro

For this investigation, i’ll follow the questions sprovided by BTLO.

I’ll be using Sublime Text in Sift WorkstationVM with Email Header (https://packagecontrol.io/packages/Email%20Header) plugin, to get some highlighting on headers.

There are many header present in Email messages being sent. Some are standardized (https://www.iana.org/assignments/message-headers/message-headers.xhtml) and some are experemental or extended and they have X- prepended.

Now let’s begin.

The Beginning

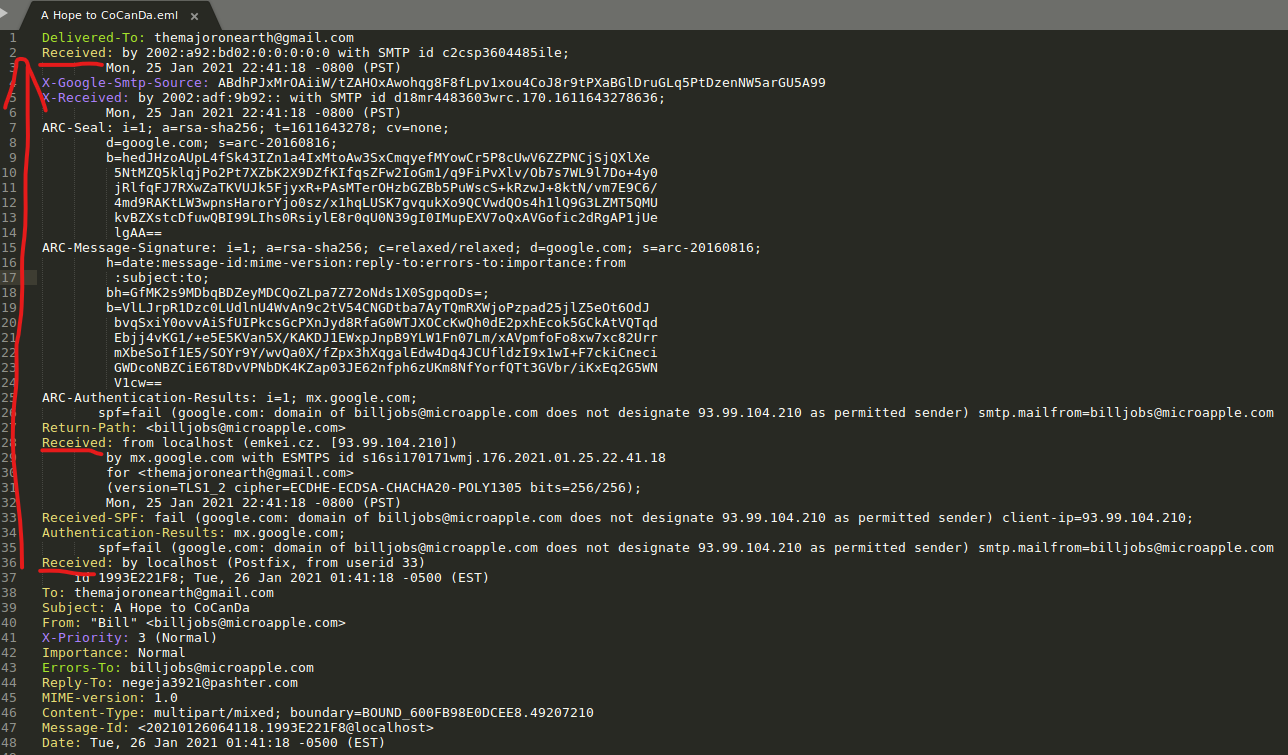

The topmost Recieved Header is the one closest to destination, where the lowest one is closer to the sender. Apparently client was using postfix which is why we nee to look in the second Recieved header in the middle on line 28.

What is the email service used by the malicious actor? (1 points): emkei.cz

THE interessting headers

Let’s take the look to different headers for the sake of learning

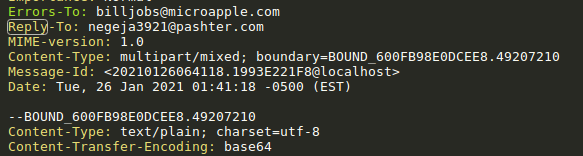

Reply-To

When the “Reply-To:” field is present, it indicates the mailbox(es) to which the author of the message suggests that replies be sent. Link: https://datatracker.ietf.org/doc/html/rfc4021#page-8

What is the Reply-To email address? (2 points): negeja3921@pashter.com

Errors-To

A bounce address is an email address to which bounce messages are delivered. There are many variants of the name, none of them used universally, including return path, reverse path, envelope from, envelope sender, MAIL FROM, 5321-FROM, return address, From_, Errors-to, etc. It is not uncommon for a single document to use several of these names. Link: https://en.wikipedia.org/wiki/Bounce_address

Return-Path

Return path for message response diagnostics. Link: https://datatracker.ietf.org/doc/html/rfc4021#page-17

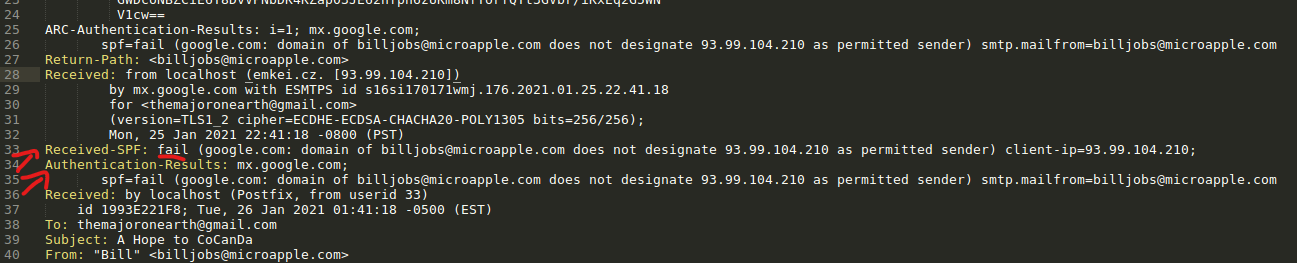

Received-SPF: fail and Authentication-Results

We can that Recieved-SPF returns a fail

Google.com has a DNS TXT record set with SPF information in it which basically states what is allowed and what not.

Digging deeper in SPF

So let’s manually check the SPF policy from google.com.

sansforensics@siftworkstation: ~/Desktop/cases_CTF
$ dig google.com txt | grep spf
google.com.		5	IN	TXT	"v=spf1 include:_spf.google.com ~all"

First DNS TXT record of google.com says we need to check _spf.google.com so let’s do that.

sansforensics@siftworkstation: ~/Desktop/cases_CTF
$ dig _spf.google.com txt | grep spf
; <<>> DiG 9.10.3-P4-Ubuntu <<>> _spf.google.com txt
;_spf.google.com.		IN	TXT
_spf.google.com.	5	IN	TXT	"v=spf1 include:_netblocks.google.com include:_netblocks2.google.com include:_netblocks3.google.com ~all"

Now we get more information where the Emails from google.com should actually come from.

v=spf1 tells us a version

include:_netblocks.google.com include:_netblocks2.google.com include:_netblocks3.google.com is the actual policy. We can resolve the _netblocks simply by asking DNS

sansforensics@siftworkstation: ~/Desktop/cases_CTF
$ dig _netblocks.google.com txt | grep spf
_netblocks.google.com.	5	IN	TXT	"v=spf1 ip4:35.190.247.0/24 ip4:64.233.160.0/19 ip4:66.102.0.0/20 ip4:66.249.80.0/20 ip4:72.14.192.0/18 ip4:74.125.0.0/16 ip4:108.177.8.0/21 ip4:173.194.0.0/16 ip4:209.85.128.0/17 ip4:216.58.192.0/19 ip4:216.239.32.0/19 ~all"

~all means that all other senders should be disallowed.

If we check the senders Email, we’d see that it does not come from allowed IP range, hence fail

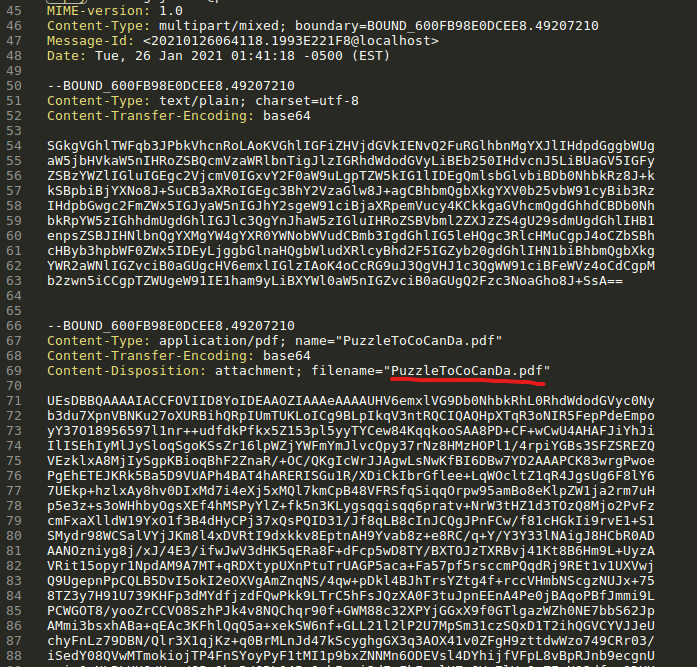

Attachments

Attachments are attached to the Emails like documents are send over HTTP POST Requests.

Filename actually says it’s PDF but if we copy whole Base64, decode it and save it to the filename…

echo UEsDBBQAAAAIb0NhbkRhL0RhdWdodGVyc0Ny
b3du7XpnVBNKu27oXURBihQRpIUmTUKLoICg9BLpIkqV3ntRQCI....CLIP...." | base64 -d | filename

…and run a file comand on it it would return ZIP-File

What is the filetype of the received attachment which helped to continue the investigation? (1 points): .zip

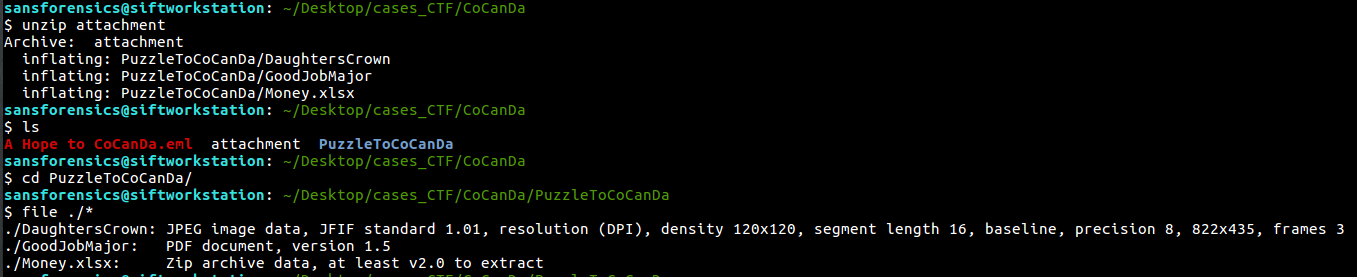

If we unpack the attachment we get 3 Files, a JPEG, PDF and XLSX.

… and here is where CTF-y part begins.

The CTF-y part

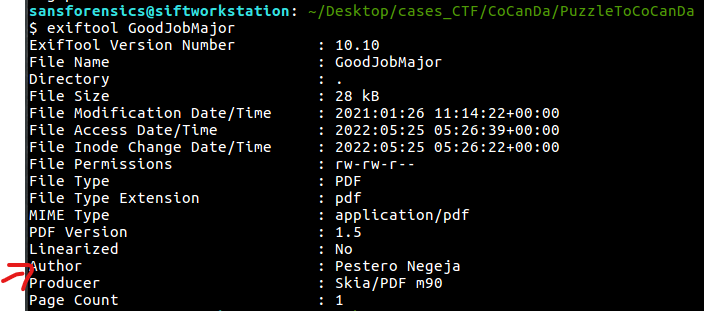

Running exiftool

We can find the author running exiftool on the PDF file.

What is the name of the malicious actor? (2 points): Pestero Negeja

Analyzing XLSX and Parsing XML

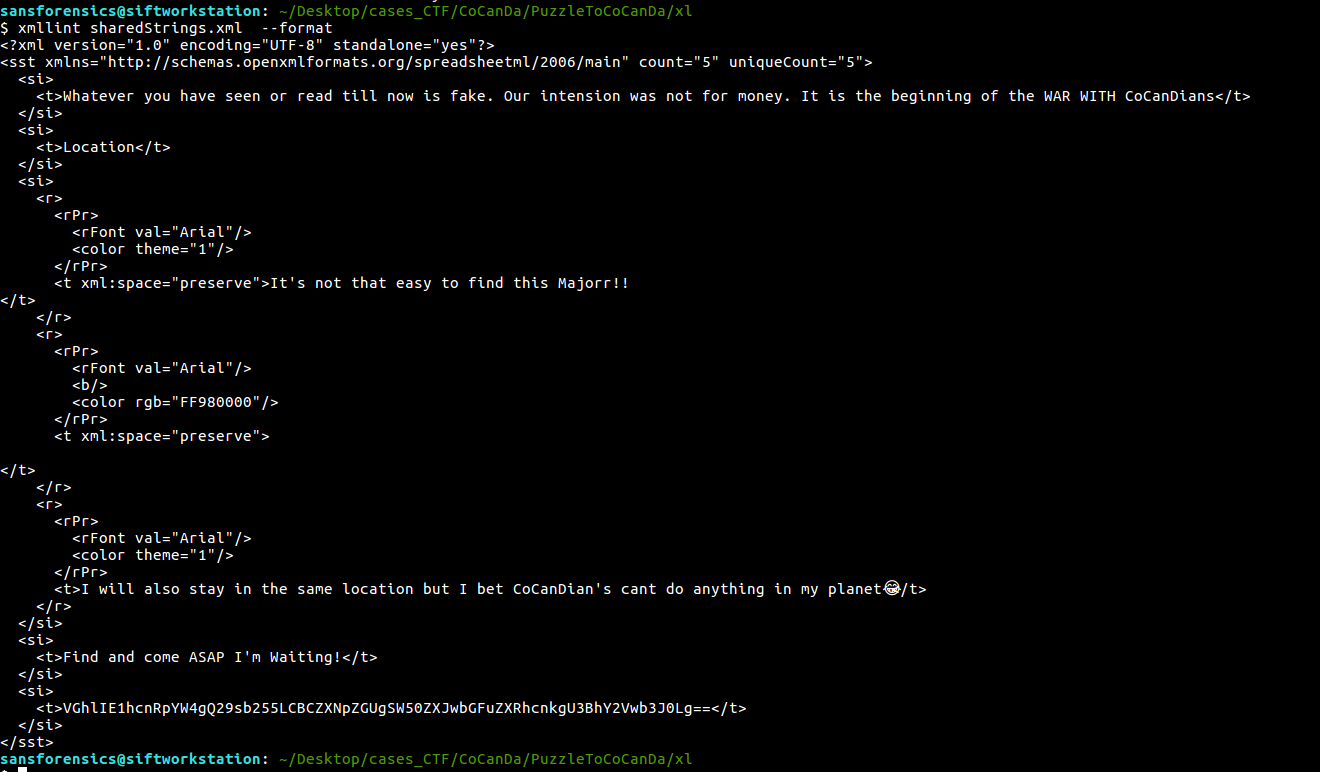

.xlsx can be unzipped as any other .zip file. Checking files in unzipped, i’ve found following text

Decoding the Base64 we can find location that BTLO is asking for

sansforensics@siftworkstation: ~/Desktop/cases_CTF/CoCanDa/PuzzleToCoCanDa/xl
$ echo "VGhlIE1hcnRpYW4gQ29sb255LCBCZXNpZGUgSW50ZXJwbGFuZXRhcnkgU3BhY2Vwb3J0Lg==" | base64 -d && echo ""
The Martian Colony, Beside Interplanetary Spaceport.

What is the location of the attacker in this Universe? (2 points): The Martian Colony, Beside Interplanetary Spaceport

The Last question

It’s might be pashter.com.

What could be the probable C&C domain to control the attacker’s autonomous bots? (2 points): pashter.com

References

https://packagecontrol.io/packages/Email%20Header https://www.iana.org/assignments/message-headers/message-headers.xhtml https://en.wikipedia.org/wiki/Bounce_address https://datatracker.ietf.org/doc/html/rfc4021#page-17 https://gnome.pages.gitlab.gnome.org/libxml2/xmllint.html
